| Brand Name : | TR SolidsControl |
| Model Number : | TRCN100-6N/8N |
| Certification : | API Q1,ISO9001 |
| Price : | USD 275-45800 or Negotiable |
| Payment Terms : | ,L/C,T/T |

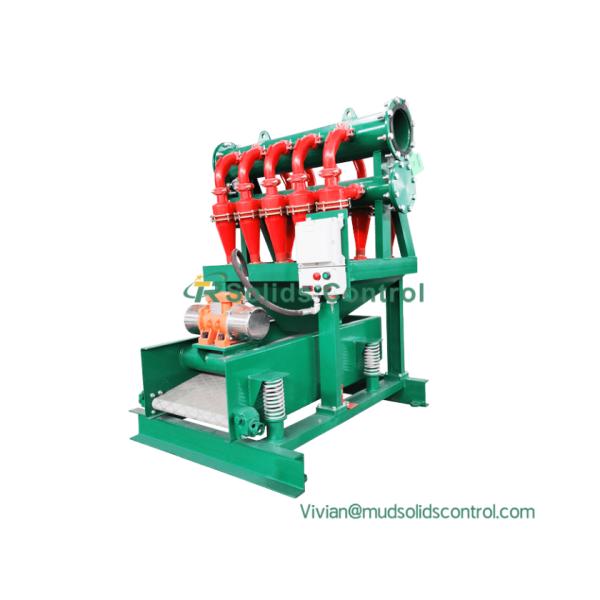

TRCN100-6N/8N High-Capacity Drilling Mud Desilter – Precision Solids Control for Demanding Operations
Product Description
The TRCN100-6N/8N High-Capacity Drilling Mud Desilter is a compact yet efficient solids control system designed for tunneling, bored pile foundation projects, HDD (Horizontal Directional Drilling), slurry recycling, and diaphragm wall construction.
With a treatment capacity of 90 m³/h (6 cyclones) or 120 m³/h (8 cyclones), this unit efficiently removes fine particles sized 15–44 μm, ensuring cleaner, reusable drilling fluids and enhanced overall project efficiency.
Built with durable materials, modular cyclone design, and international-standard components, the TRCN100-6N/8N offers reliable performance, cost efficiency, and operational flexibility even in confined job sites. Certified to RoHS environmental standards, it supports sustainable and environmentally responsible construction practices.
Features & Benefits
✔ Durable Cyclone Options – Choice of polyurethane or high-chromium iron for extended wear resistance.
✔ Modular Clamp Connection – Quick installation, dismantling, and replacement of hydrocyclones.
✔ Independent Flow Control – Ball valves at inlets/outlets allow selective operation of cyclone units.
✔ Premium Vibration Motors – Powered by Martin or OLI motors for reliable and stable performance.
✔ Integrated Screening System – Equipped with bottom shaker TRZS60 and lifting device for precise separation.
✔ Flexible Configurations – Compatible with cyclones; customizable with or without bottom shaker..
Technical Specifications
Parameter | TRCN100-6N/8N |
Capacity | 90–120 m³/h |
Hydrocyclones | 6–8 pcs |
Cyclone Diameter | 4" (100 mm) |
Working Pressure | 0.25–0.4 MPa |
Inlet Size | DN125 mm |
Outlet Size | DN150 mm |
Separation Point | 15–44 μm |
Bottom Shaker | TRZS60 |
Weight | 560–880 kg |
Dimensions (mm) | 1510×1360×2250 |
Customizable | Yes |
Technical Advantages
✔ Efficient Solids Control – Effectively separates particles as fine as 15–44 μm.
✔ Space-Saving Design – Compact footprint suitable for restricted urban and underground job sites.
✔ Reduced Downtime – Modular cyclone design allows for quick and easy maintenance.
✔ Reliable Components – Fitted with international-standard motors and electricals for stable operations.
✔ Eco-Friendly Operation – Fully RoHS-certified, aligning with environmental safety standards.
Applications
✔ Tunneling & Micro-Tunneling
✔ Pipe-Jacking Projects
✔ Bored Pile & Piling Construction
✔ Diaphragm Wall Construction
✔ Horizontal Directional Drilling (HDD)
✔ Slurry Recycling Systems
Advantages & Services
✔ High Quality at Competitive Price – Robust construction with superior separation efficiency.
✔ Fast Global Delivery – Large inventory ensures timely shipment worldwide.
✔ Flexible Payment Options – Tailored to meet customer requirements.
✔ Comprehensive After-Sales Service – Global technical support and spare parts availability.
Why Construction Professionals Choose TRCN100-6N/8N?
✔ Adaptability – Seamlessly supports HDD, TBM, piling, tunneling, and other civil projects.
✔ Cost Efficiency – Recovers over 90% reusable drilling fluids, reducing material and disposal expenses.
✔ Environmental Compliance – Meets international safety and environmental standards.
✔ Proven Reliability – Widely trusted in major construction and infrastructure projects worldwide.
About TR SolidsControl
TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
|
|
