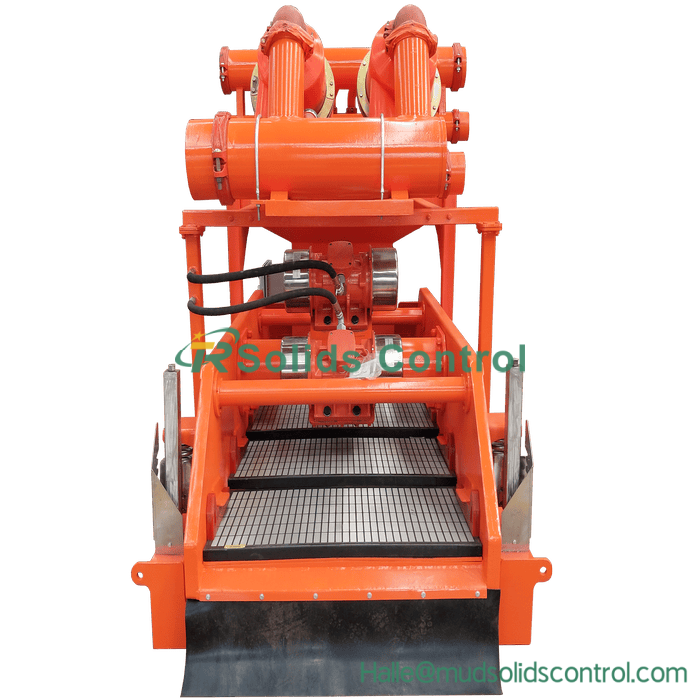

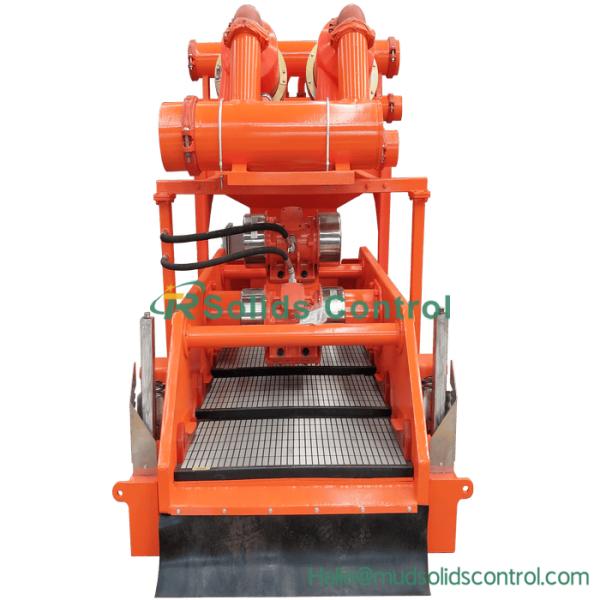

TRQJ200×2S-100×8N Mud Cleaner– Efficient integration, ultimate purification
TRQJ200×2S-100×8N Mud Cleaner is a highly integrated mud purification equipment, which is designed for medium and large drilling projects, which can carry out two-stage purification of drilling fluid at the same time, and efficiently remove harmful solid phases of 15-45μm, which is the core equipment to improve mud performance and ensure drilling efficiency.
Advantage
✔ Dual purification in one: one device integrates sand and sludge removal functions, saving space and investment.
✔ Efficient grading treatment: 2 8" cyclones handle coarse particles, 8 4" cyclones handle fine particles, high purification accuracy.
✔ Powerful throughput: up to 120 m³/h to meet the flow requirements of most drilling projects.
✔ Modular design: The cyclone set is connected by quick-release clamps, and a single person can quickly complete maintenance and replacement.
✔ Long-life wear-resistant design: The cyclone lining is made of high-wear-resistant polyurethane or ceramic materials, which is suitable for high-abrasive working conditions.
Technical Specifications
Model | TRQJ200×2S-100×8N |
Capacity | 120m³/h |
Desander Cyclone Specs | 8 in |
Desander Cyclone Qty | 2nos |
Desilter Cyclone Specs | 4 in |
Desilter Cyclone Qty | 8 nos |
Working Pressure | 0.25~0.4 mpa |
Inlet Size | DN 150 mm |
Outlet Size | DN 200 mm |
Separation Point | 15 μm~44 μm |
Bottom Shaker | TRZS752/N/A |
Dimension | 1835×1230×1810 mm |
Weight | 980kg |
Application
oil and gas development wells, exploration wells
Drilling of deep wells, ultra-deep wells and geothermal wells
Large Displacement Horizontal Directional Drilling (HDD) Project
Tunnel boring (TBM) mud purification system
Large-scale pile foundation engineering and diaphragm wall construction
Mud does not fall on the environmental protection treatment system
Why choose us?
✅High ROI: One piece of equipment achieves two-stage purification, significantly reducing procurement and operation and maintenance costs.
✅Easy system integration: The overall skid-mounted design and simple pipeline connection reduce installation time and complexity.
✅Convenient and efficient maintenance: The modular design makes daily inspections and replacement of cyclones extremely easy.
✅Stable slurry quality: effectively protect drilling tools and equipment, and improve mechanical drilling speed.
✅Global service support: Rely on TR's global supply chain and service network to provide original spare parts.
About TR Solids Control
TR Solids Control is a leading global manufacturer of drilling fluid solids control equipment, delivering cutting-edge solutions and complete systems for the oil and gas, trenchless, geothermal, and heavy civil construction industries. Our commitment to innovation, quality, and customer support ensures that we provide high-performance, reliable products backed by lifetime service.
|
|
