| Brand Name : | TR Solids Control |
| Model Number : | TRQJ250×2S-100×12N |
| Certification : | API Q1,ISO9001 |
| Price : | USD 275-45800 or Negotiable |
| Payment Terms : | L/C,T/T |

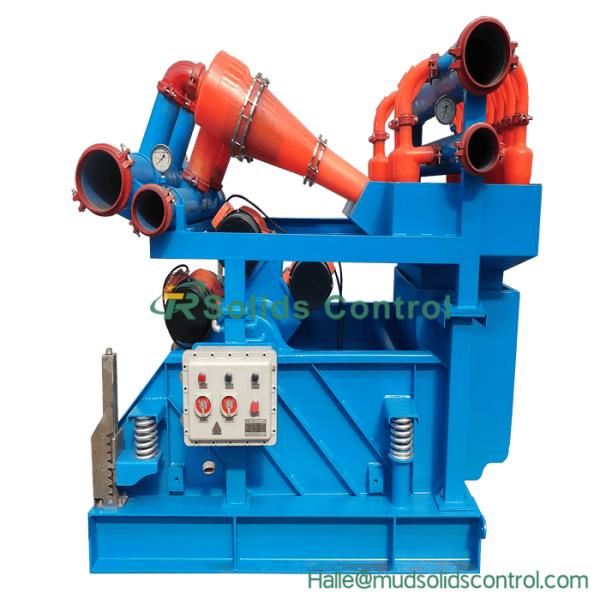

TRQJ250×2S-100×12N Mud Cleaner – Efficient Integration, Ultimate Purification
The TRQJ250×2S-100×12N Mud Cleaner is a highly integrated purification system. It is specifically designed for large-scale and demanding drilling operations. This unit performs two-stage purification of drilling fluid simultaneously. It efficiently removes harmful solid phases from 15 to 45 micrometers. This makes it a core asset for enhancing mud performance and securing drilling efficiency.
Advantage
✔Dual Purification in One: One compact unit combines both desanding and desilting functions. This integration saves valuable space and reduces initial investment.
✔Efficient Grading Treatment: Features 2 large 10" cyclones for coarse particles and 12 efficient 4" cyclones for fine particles. This ensures high purification accuracy and superior performance.
✔Powerful Throughput: Delivers a maximum processing capacity of 240 m³/h. It easily meets the high-flow demands of major drilling projects.
✔Modular Design: The cyclone banks are connected with quick-release clamps. This allows a single operator to perform rapid maintenance and replacements.
✔Long-Life Wear Resistance: Cyclone liners are constructed from high-wear-resistant polyurethane or ceramic materials. This ensures outstanding durability in highly abrasive working conditions.
Technical Specifications
Model | TRQJ250×2S-100×12N |
Capacity | 240m³/h |
Desander Cyclone Specs | 10 in |
Desander Cyclone Qty | 2nos |
Desilter Cyclone Specs | 4 in |
Desilter Cyclone Qty | 12nos |
Working Pressure | 0.25~0.4 mpa |
Inlet Size | DN 150 mm |
Outlet Size | DN 200 mm |
Separation Point | 15 μm~44 μm |
Bottom Shaker | TRZS752/N/A |
Dimension | 1835×1230×1810 mm |
Weight | 1250kg |
Application
●Oil and gas development and exploration wells.
●Drilling operations for deep wells and ultra-deep wells.
●Large-displacement horizontal directional drilling (HDD) projects.
●Mud purification systems for tunnel boring machines (TBM).
●Large-scale pile foundation and diaphragm wall construction.
●Environmental treatment systems with zero mud disposal.
Why Choose Us?
✅High ROI: One machine achieves two-stage purification. This significantly lowers both procurement and operational costs.
✅Easy System Integration: Its skid-mounted design and simple piping connections greatly reduce installation time and complexity.
✅Convenient & Efficient Maintenance: The modular design makes daily checks and cyclone replacements extremely straightforward.
✅Stable Slurry Quality: Effectively protects downstream drilling tools and equipment. This leads to a higher rate of penetration (ROP).
✅Global Service Support: We provide original spare parts and expert support through our global supply chain and service network.
