| Brand Name : | TR Solids Control |
| Model Number : | TRGLW355N-1 |
| Certification : | API Q1,ISO9001 |
| Price : | USD 275-45800 or Negotiable |
| Payment Terms : | L/C,T/T |

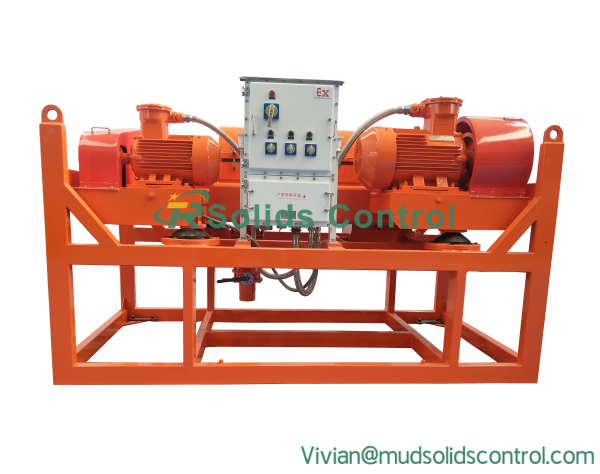

Decanter Centrifuge – High-Performance Solids Control and Separation Equipment
Product Description
The Decanter Centrifuge from TR Solids Control is a precision-engineered solid-liquid separation machine designed for efficient fine particle removal in drilling fluids, wastewater treatment, mining, and industrial processes.
By utilizing high-speed rotation to generate strong centrifugal force, the decanter centrifuge separates solids from liquids down to 2–5 microns, ensuring cleaner fluids and improved operational efficiency.
TR Decanter Centrifuges are built with high-strength stainless steel bowls, tungsten carbide wear protection, and explosion-proof drive systems—making them reliable even in the harshest oilfield and construction environments. Models like TRLW355, TRLW450, and TRLW600 provide flexible configurations for both high-speed and variable frequency applications.
Features & Benefits
✔ High Separation Efficiency – Capable of removing ultra-fine solids as small as 2 microns.
✔ Variable Speed Operation – Adjustable bowl and scroll speed to adapt to different mud conditions.
✔ Heavy-Duty Construction – Wear-resistant materials extend service life under abrasive conditions.
✔ Explosion-Proof Design – Certified to ExdllBt4 / IECEX / ATEX standards for oilfield safety.
✔ High G-Force Capacity – Delivers powerful centrifugal separation with G-forces up to 2000+.
✔ Automatic Operation – Ensures consistent performance with minimal operator intervention.
✔ Energy-Efficient Drive System – Optimized gearbox and motor design for reduced energy use.
✔ Compact & Low Noise – Space-saving structure suitable for mobile solids control systems.
Technical Data of Decanting Centrifuge
| Model | TRGLW355N-1 | TRGLW450N-2 | TRGLW450N-3 | TRGLW550N-1 |
| Bowl Diameter | 355mm (14inch) | 450mm (17.7inch) | 450mm (17.7inch) | 550mm (22inch) |
| Bowl Length | 1250mm(49.2inch) | 1250mm(49.2inch) | 1600(64inch) | 1800mm(49.2inch) |
| Max Capacity | 40m3/h | 60m3/h | 70m3/h | 90m3/h |
| Max Speed | 3800r/min | 3200r/min | 3200r/min | 3000r/min |
| Rotary Speed | 3200r/min | 3000r/min | 2800r/min | 2600r/min |
| G-Force | 3018 | 2578 | 2578 | 2711 |
| Separation | 2~5μm | 2~5μm | 2~5μm | 2~5μm |
| Main Drive | 30kW-4p | 30kW-4p | 45kW-4p | 55kW-4p |
| Back Drive | 7.5kW-4p | 7.5kW-4p | 15kW-4p | 22kW-4p |
| Weight | 2950kg | 3200kg | 4500kg | 5800kg |
| Dimension | 2850X1860X1250 | 2600X1860X1250 | 2950X1860X1250 | 3250X1960X1350 |
(Note: Rotary speed can be adjustable as per user's requirements)
Technical Advantages
✔ Precision-Balanced Bowl: Ensures vibration-free operation and long service life.
✔ Dual-Motor Drive System: Independent control of bowl and conveyor speeds for fine separation.
✔ Enhanced Wear Protection: Tungsten carbide tiles and sleeves safeguard key wear areas.
✔ Intelligent Control System: Optional VFD control for precise speed regulation and power saving.
✔ High Torque Gearbox: Guarantees smooth torque transmission and stable differential speed.
✔ Corrosion-Resistant Material: All wetted parts made of SS304 or SS316L for extended durability.
✔ Easy Maintenance: Modular design simplifies part replacement and cleaning.
Applications
✔ Oil & Gas Drilling Mud Solids Control
✔ HDD (Horizontal Directional Drilling) & Trenchless Construction
✔ Mining & Mineral Processing
✔ Industrial Wastewater & Sludge Dewatering
✔ Environmental & Municipal Sludge Treatment
✔ Chemical and Food Industry Separation Processes
Advantages & Services
✔ Tailor-Made Configurations: Available in various bowl sizes and speed ranges to suit your process.
✔ Global Certification: Meets international quality and safety standards (IECEX, ATEX, CE).
✔ Proven Reliability: Field-tested in diverse oilfield and industrial environments worldwide.
✔ Comprehensive After-Sales Support: Installation, commissioning, and operator training.
✔ Spare Parts & Maintenance: Full stock of wear parts ensures quick delivery and minimal downtime.
✔ Engineering Consultation: Expert advice for integration with complete solids control systems.
Why Drilling Professionals Choose it?
✔ Superior Fine Solids Removal: Maximizes drilling fluid recovery and minimizes waste.
✔ Long-Lasting Durability: Engineered with premium materials for heavy-duty performance.
✔ High Efficiency & Low Maintenance: Reliable separation with reduced operational costs.
✔ Safety & Compliance: Explosion-proof systems ensure safe performance in hazardous areas.
✔ Trusted Industry Brand: Backed by TR Solids Control’s global experience and technical excellence.
✔ Wide Application Range: Suitable for drilling, construction, mining, and environmental industries.
About TR SolidsControl
TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
|
|
