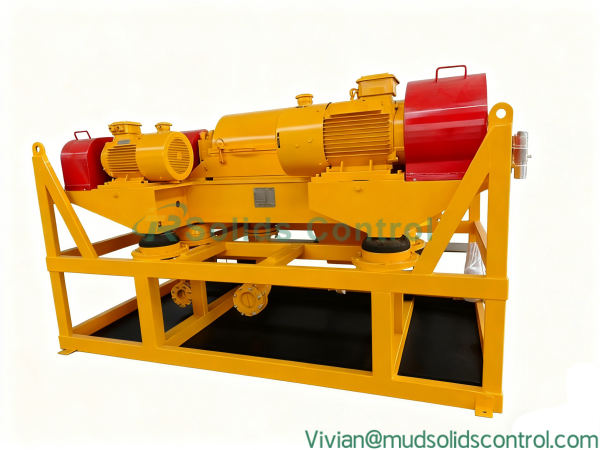

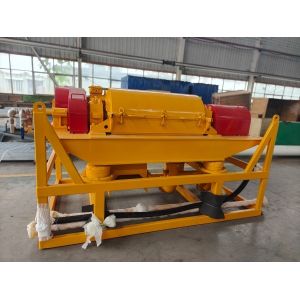

Decanter Centrifuge – High-Precision Solids Control & Separation Technology
Product Description
A Decanter Centrifuge is an advanced solids-liquid separation system widely used in oil & gas drilling, environmental protection, wastewater treatment, mining, tunneling, and industrial processing. Using high rotational speed and strong centrifugal force, the centrifuge continuously separates fine solids (as small as 2–5 microns) from slurry or drilling fluids, ensuring improved fluid quality and greater operational efficiency.
Engineered with a high-strength bowl, precision gearbox, and heavy-duty motors, the decanter centrifuge delivers stable, reliable performance even under harsh and abrasive conditions. Its automatic and continuous operation helps reduce chemical usage, minimize waste volumes, and lower overall fluid management costs.
Features & Benefits
✔ High Separation Efficiency – Removes ultra-fine solids, improving drilling fluid quality and reducing wear on downstream equipment.
✔ Continuous & Automatic Operation – Maintains stable separation without manual intervention.
✔ Robust Construction – Wear-resistant components extend service life in abrasive environments.
✔ Wide Speed Range – Adjustable bowl and differential speeds allow precise control of separation performance.
✔ Low Noise & Low Vibration – Balanced rotating assembly ensures smooth operation.
✔ Energy Efficient – Designed to reduce power consumption while maximizing output.
Technical Data of Decanting Centrifuge
| Model | TRGLW355N-1 | TRGLW450N-2 | TRGLW450N-3 | TRGLW550N-1 |
| Bowl Diameter | 355mm (14inch) | 450mm (17.7inch) | 450mm (17.7inch) | 550mm (22inch) |
| Bowl Length | 1250mm(49.2inch) | 1250mm(49.2inch) | 1600(64inch) | 1800mm(49.2inch) |
| Max Capacity | 40m3/h | 60m3/h | 70m3/h | 90m3/h |
| Max Speed | 3800r/min | 3200r/min | 3200r/min | 3000r/min |
| Rotary Speed | 3200r/min | 3000r/min | 2800r/min | 2600r/min |
| G-Force | 3018 | 2578 | 2578 | 2711 |
| Separation | 2~5μm | 2~5μm | 2~5μm | 2~5μm |
| Main Drive | 30kW-4p | 30kW-4p | 45kW-4p | 55kW-4p |
| Back Drive | 7.5kW-4p | 7.5kW-4p | 15kW-4p | 22kW-4p |
| Weight | 2950kg | 3200kg | 4500kg | 5800kg |
| Dimension | 2850X1860X1250 | 2600X1860X1250 | 2950X1860X1250 | 3250X1960X1350 |
(Note: Rotary speed can be adjustable as per user's requirements)
Technical Advantages
✔ High-speed bowl design generates strong G-force for maximum solids removal.
✔ Advanced gearbox system ensures smooth torque transmission and stable differential control.
✔ Tungsten carbide protection on feed zones, scroll flights, and discharge ports reduces wear.
✔ Heavy-duty bearings designed for long running hours under high loads.
✔ Optional VFD control provides flexible speed settings for various drilling or processing conditions.
✔ Explosion-proof motors available for hazardous working environments.
Applications
✔ Oil & Gas Drilling Fluids Solids Control
✔ HDD & Trenchless Engineering
✔ Mining Slurry Dewatering
✔ Industrial Wastewater & Sludge Treatment
✔ Environmental Remediation Projects
✔ Food, Chemical & Pharmaceutical Processing (custom configuration available)
✔ Geothermal & Tunneling Projects
Advantages & Services
✔ Customized Bowl Sizes & Configurations (355, 450 mm available)
✔ Full Certification Support (EX, IECEX, ATEX upon request)
✔ Global Delivery & Spare Parts Supply
✔ Professional On-site Commissioning & Training
✔ Long-term Maintenance Support
✔ Fast-response Technical Service & Troubleshooting
✔ OEM/ODM Manufacturing Services Available
Why Drilling Professionals Choose it?
✔ Superior separation efficiency, even with ultra-fine solids
✔ High durability with premium wear-resistant materials
✔ Low operational cost and optimized energy performance
✔ Reliable long-term operation in heavy-duty drilling and industrial environments
✔ Proven technology trusted by drilling contractors and solids control companies worldwide
✔ Consistent quality control and world-class manufacturing standards
About TR SolidsControl
TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
|
|
